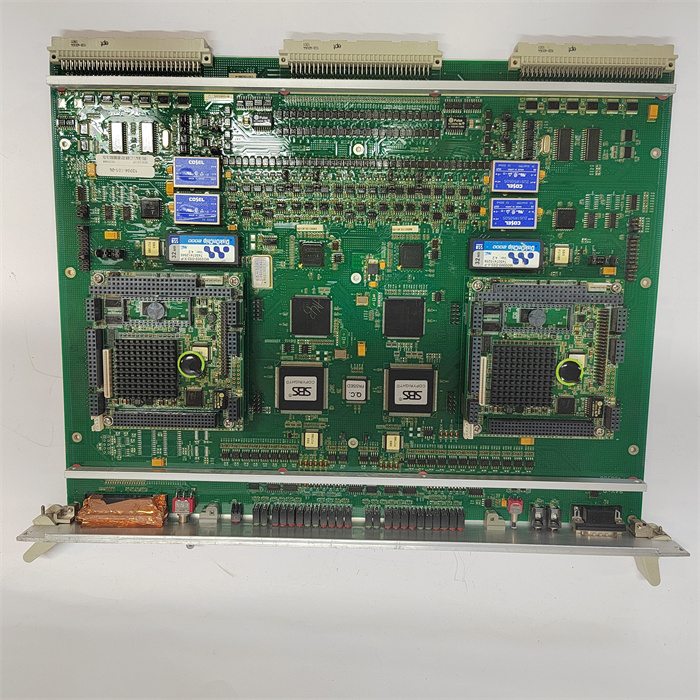

ALSTOM 12004-101-00工控备件模块

产品详细资料
可用功能概述以及保护和控制功能的单线图如下所示。有关每个功能操作的完整理解，请参阅第4章：设置点。逻辑图包括与特征相关的每个设定点的参考，并显示了在各个特征之间传递的所有逻辑信号。还提供了与每个设置点的设置选择相关的信息。CPU继电器功能由两个处理器控制：一个是Freescale MPC5125 32位微处理器，用于测量所有模拟信号和数字输入并控制所有输出继电器，另一个是飞思卡尔MPC8358 32位微处理器用于控制所有以太网通信协议。模拟输入和波形捕获磁性变压器用于缩小来自源仪表变压器的输入模拟信号。模拟信号然后通过11.5kHz低通模拟抗混叠滤波器。然后，采样和保持缓冲器同时捕获所有信号，以确保不存在相移。信号由16位a/D转换器转换为数字值，后传递给CPU进行分析。
A summary of the available functions and a single-line diagram of protection and control features is shown below. For a complete understanding of each feature operation, refer to Chapter 4: Setpoints. The logic diagrams include a reference to every setpoint related to a feature and show all logic signals passed between individual features. Information related to the selection of settings for each setpoint is also provided.CPU Relay functions are controlled by two processors: a Freescale MPC5125 32-bit microprocessor that measures all analog signals and digital inputs and controls all output relays, and a Freescale MPC8358 32-bit microprocessor that controls all the advanced Ethernet communication protocols. Analog Input and Waveform Capture Magnetic transformers are used to scale-down the incoming analog signals from the source instrument transformers. The analog signals are then passed through a 11.5 kHz low pass analog anti-aliasing filter. All signals are then simultaneously captured by sample and hold buffers to ensure there are no phase shifts. The signals are converted to digital values by a 16-bit A/D converter before finally being passed on to the CPU for analysis.
主营产品简介
专注于DCS、PLC、机器人控制系统、大型伺服四大系统领域。

主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。

优势：供应进口原装正品，专业停产配件，

发货快，货期精准，

主营品牌包括 ABB贝利、GE/FUANC、FOXBORO、英维思TRICONEX 、本特利BENTLY、A-B罗克韦尔、艾默生EMERSON 、OVATION、MOTOROLA、XYVOM、霍尼韦尔HONEYWELL 、力士乐REXROTH、KUKA、NI、DEIF、横河、伍德沃德WOODWARD、瑞恩、施耐德SCHNEIDER 、安川、 穆格MOOG、PROSOFT等品牌。

只卖库存产品;出完需订货!价格以客服说明为准!!订货货期以客服说明为准，有任何疑问请联繁客服! Limited stock, Contact US!

●使用前:

在操作和维护，安装设备之前，请阅读并严格遵守安全相关的信息。

Read and strictly follow safety-related information before operatingmaintainingand installing equipment.

●使用者要求:

必须从事安装，组装或维护设备等相关工控电气机械以及其他相关技术的人员。

Must be engaged in the installation,assembly or maintenance of equipment and other related industriacontroeectrica machinery and other related technica personne.应用范围:

应用于品牌本系列工业以及生产生活自动化设备产品。

Used in the brand of this series of industriaand production automation eauipment products

适用于场景:系统集成，非标定制，产线升级改造，原设备电气替换等等。

Suitable for scenarios:system integration,non-standard customizationproduction line upgrading and transformation,electrical replacement of original equipment,etc.

●操作人员:

应该由本品牌专业培训操作员来安装、操作和维修设备。专业人员具有技术能力强，熟悉安全信息和安全实施:

熟悉设备的安装加工、操作和维护:熟悉处理所有的潜在危险情况。

Equipment should be installed,operated and maintained by trained operators from the brand

●危险情况

警告

.请注意使用人员的人身安全。

●除了产品特性以及功能，还需了解产品的使用寿命环境。

●充分学习产品使用手册，否则非专业人员可能会造成人身危险。

Study the product instruction manual thoroughlyotherwise it may cause personal danger to non-professionals.

●服务行业

适用水泥，木业，石业，橡胶，石油，化工，发电，环保，水处理，制冷，交通，钢铁，食品，饮料，船舶，制冷等行业

Applicable to cementwood,stone,rubber,petroleumchemical, power generation
